Self Adhesive 120vac max
REMEMBER WE CREDIT SAMPLE KITS TOWARDS YOUR LARGER ORDER.
for ex: If you require a half moon shape or any other irregular cut, you must calculate the rectangle that the shape will be cut from. If you wish to have the material pre-wired in a specific location simply let us know in the comment section at check out.
If you require a cut that is irregular in shape or size, you may provide us with a template. After your order has been processed, you can email [email protected] or mail the template with a copy of your receipt to:
of liquid crystal molecules and polymer makes light disperses then it dorection then parallel light can pas through the film makes it transparent.
Auto Smart Tint

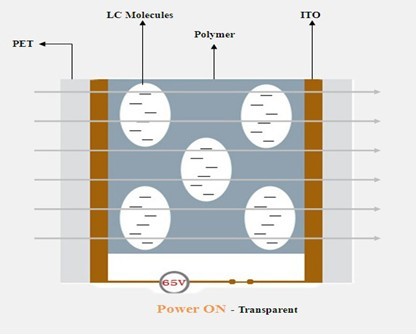

The film is composed of PET film, ITO film, polymer and liquid crystal molecules. When the film is under off state, the randomly aligned liquid crystal molecules stay along on the walls of capsule, the reflection of liquid crystal molecules and polymer makes light disperses then it dorection then parallel light can pas through the film makes it transparent.

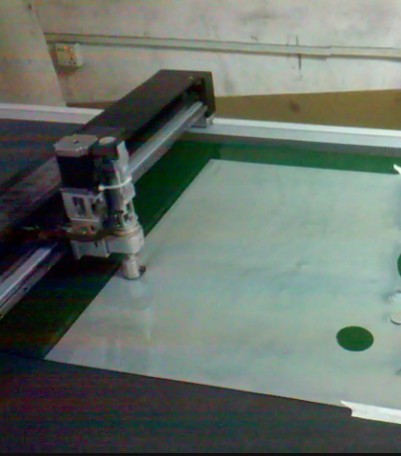

Auto Computerized Cutting Machine
|Operating System||Win 2000, XP, Vista, Win 7|
|Method of fixing||Vacuum absorption|
|Format compatible||Grafic Software|
|Control panel||Liquid crystal display|
|Operating voltage||AC220V, 50HZ|
|Max cutting size||1200*3000mm|
"Our Non-Adhesive is very popular for projection screens, electronic blinds, white boards and mechanical installation techniques do to its rigidity. They both provide maximum clarity when energized and extreme privacy when powered off."
*** FOR AUTOMOTIVE APPLICATIONS - If you wish to install smart tint on your auto, boat or plane, we will provide you with a sheet of smart tint that is pre-wired and ready for installation. You can cut/trim the material to fit your application. Self Adhesive Smart Tint is used for mobile applications. Measure the window as if it were a square/rectangle and that will be the dimensions of the sheet you will need to order. Make sure to compensate at least four inches below the door jam when measuring to accommodate for the wiring. Upon receiving your shipment, simply make a template of the window and cut your Smart Tint to fit your application using that template. Check out the installation video in our automotive section.
If you require a custom color such as red, blue, yellow or green then you must contact us for special order pricing.
(contact us for more details and restrictions)
Contact us for price quotes on projects larger than 40 square feet
Provide us your measurements , which side or corner you would like the wires installed , self adhesive Smart Cling or non-adhesive backing and any other special instructions in the message section of our contact us form for quickest response from one of our design engineers.
1. Power Draw (in watts)
5 watts/s.q. meters
clear-> opaque : 500~700 milisecond
-clear state 83% 81%
-opaque state 77% 67%
-clear state 5 % 5%
-opaque state 89% 92%
- Power – 110-220VAC
- Frequency – 50/60Hz
- Current – 0.04 amperes per m2
- Power – less than 5 watts per m2 (power is consumed only in the (on) transparent state)
- Operation – (on) transparent (off) opaque
- Thickness – 0.24mm
- Viewing angle – more than 160 degrees
- Light transmittance – On (87%) Off (5%)
- Haze Coefficient – On (7%) Off (87%)
- UV – absorbs +85%
Infrared – reflects +70%
Specifications are not static and results vary in different climates and temperatures. There is a 5% tolerance on specifications to allow for the seen and unforseen variables. Order a sample kit and make an educated decision.
1. Yes - you can cut SmartTint™ after it has been pre-wired.
(Just don’t cut the wires)
2. Operating Voltage is 75 vac +/- 10 v
3. Yes, Self Adhesive Smart Tint™ can be used on automotive glass
4. Yes, Non-Adhesive Smart Tint™ can be
mechanically installed ( trim kit , glass sandwich, smart tape, etc.)
5. Yes, Multiple pieces can be used at the same time with the same power supply ( up to 150 sq. ft.)
6. Yes , It is remote controlable
7. Yes, You can dim it
8. Yes, you can install it yourself or contact a local dealer/contractor.
9. Yes , We can provide you a completely pre-wired system and installation kit !
10. Yes, it is only clear when energized.
If you require a half moon shape or any other irregular cut, you must calculate the rectangle that the shape was cut from. If you wish to have the material pre-wired in a specific location simply let us know .
If you require a cut that is irregular in shape or size, you may provide us with a template via mail or email.
We will provide detailed instructions after purchase has been completed.
Max. cut sizes vary for color and self adhesive vs. non-adhesive.
Max cut size is 70.5" in width and 12 feet 244" in length.
We cut any shape or size and install the copper bus bars to operate the material. All excess material from custom cuts will be shipped with your order. For Example: If you require a half moon shape you must calculate the rectangle that the half moon was cut from and we will send you the excess material. If you wish to have the copper bus bars in a specific location, simply let us know in the comment section at checkout. If you wish to have a complete pre-wired system with no exposed copper bus bars simply let us know in the comment section at check out .
We offer the best prices in the industry, the highest quality material with a warranty plus engineering design services for your project.
contact us for pricing.
