HOW TO INSTALL:
A Smart Tint® Project Manager will email you shop drawings to confirm all final details and provide Engineering time to discuss all installation tolerances and logistics prior to manufacturing after you provide us the rough measurements of the visible glass area you wish to utilize our technology on.

Install Guide
All or any physical defects or damage are to be reported prior to installation
and removal of the protective coating that is on both sides of the material.


Recommended Supplies
- Window scraper/razor
- Smart Film® Edge Sealant
- Nitrile gloves
- Microfiber towels
- Glass cleaner (98% or greater Isopropyl Alcohol)
- Squeegee
- Wire stripper
- Razor Blade for glass cleaning ONLY
- 18 Gauge Electrical wires
- Soldering iron
- Lead free solder
- Trim Kit (non-conductive)


Do NOT use water or any other liquids for installation other than for cleaning beforehand. Installation surface must be clean and dry. We recommend the outer dimensions of the film be 1/8" shorter than the glass around all edges. The electrical contact strip and leads should NEVER come into contact with any metal frame, trim, or surrounding objects. The finished trim should be nonconductive. Always ensure the completed project is trimmed with nonconductive materials and that all exposed wires, leads, etc. are covered sufficiently to eliminate the possibility of electrical shock or fire. We are not responsible for improper installations and highly recommend professional installation.

MEASURING RECOMMENDATIONS



Installation Tolerance

  • We Always recommend an installation tolerance of 1/8 of an inch (2-3 mm) off of the measurements of the exposed visible area of the glass. This allows for installation tolerance so you can center the film on the glass. The installation tolerance also compensates for any unevenness along the edges of the window frame and reduces the chances that the Smart Tint will need to be trimmed on site. YOU MUST LEAVE TOLERANCE FOR THE WIRING TO BE ATTACHED TO THE FILM. If you do not the bus bar copper connections can lift from the film breaking the electrical connection causing the film to fail.

Adequate Lighting

  • Ensure the working environment is well lit. It is best to install the Smart Tint in natural light or under bright, even lighting conditions. This helps you ensure that the glass and working environment is clean and see what you are doing as you work.

A Clean Working Environment

  • The working environment needs to be as clean and dust-free as possible prior to beginning installation. If there is dust in the area or along the surfaces near the glass it can easily contaminate the Smart Tint as it is being applied. For those who are applying the Smart Film during a renovation or construction project this is particularly important, as there is often debris in the air.
  • If there is dust or debris in the air or you just want to take an extra precaution you can spray water mist into the air an hour or so prior to beginning the installation. This will help remove particulate matter from the air.
  • Smart Tint® has a proprietary Smart Cling® Self Adhesive backing technology that is the only Smart Film® in the industry to out gas on its own with a peel and stick installation method. With this said our smart film® is the only switchable film in the industry that will not cause solar fracturing and out gas small installation related air bubbles on its own over time.


Handle Smart Tint Carefully: Never buckle, fold or crease Smart Film®. It will cause delamination. Always keep the film flat and straight.



  • Do not remove the protective liner (smart cling self adhesive side) until you are ready to install the Smart Film. Doing so gives the film more exposure to any dust and debris in the air that may get stuck to it. It also makes the switchable film difficult to handle and install.
  • The protective liner on the adhesive side should only be peeled away after the Smart Film® has been applied to the glass and all air bubbles have been pressed away with a squeegee.
  • Always be careful with the edges of the film to avoid delamination.
  • When installing large pieces of Smart Privacy Film it is important to have two or more people performing the install.
  • Wipe down both sides of the protective liner of the film with isopropyl alcohol only to remove and dust or debris from the shipping container.
  • Carefully unpack the material and lay flat on a clean surface prior to installation allowing the material to relax and acclimate to the room temperature of the installation environment.

Dry Installation Instructions

Step 1: Unroll Smart Tint® Smart Film® from the box and lay the film flat and wipe down both sides of the release liner with isopropyl alcohol to remove any debris, dirt and oil.



Step 2: Scrape and clean glass. Make sure the glass is 100% free of debris, dirt and oil. Use our polycarbonate razorblades to prevent scratching the glass.



Step 3: Test Film prior to installation using the provided power control unit or test power supply.

Please note: Check all material prior to installation for any defects.
Test each piece of material easily by powering on for clear
and powered off for opaque.


Step 4: Your Smart Tint® power supply can be hardwired or plugged into a standard outlet.


Step 5: Before installation it's recommended to measure the air particulates in the room so the area is clean and free of dust. You can use an air particulate meter to make sure the dust levels are low during installation. Should not be higher than PM2.5. Ensure a dust free environment.




Step 6: Prep the glass with Smart Glass Spray™
Installation video available at https://smartglassspray.com/




Step 7: Handling and installing Smart Tint® Smart Film® is recommended to have 3 technicians.










Step 8: Install Smart Tint® Smart Film® with provided squeegee.





Step 9: Connect electrical connections.

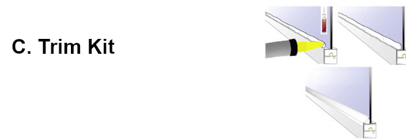

Step 9: Use our Smart Film Edge Sealant® to seal in edges of material to prevent damage of the material caused from moisture, dirt, debris, etc and install our Smart Tint® Trim Kit to conceal and cover up bus-bar wires/wiring from damage, dirt or debris..

PLEASE NOTE: Install our proprietary Smart Film® Sealant when the film is powered OFF. You must wait 12-24 hours before turning film on, allowing the Smart Film® Edge Sealant to DRY 100%.


If electrical connection busbars are NOT sealed properly with a non conductive trim kit, all warranties will be null and void.



Complete Installation: Smart Tint® Smart Film® powered off.




Smart Tint® Smart Film® powered on.




Smart Tint® Smart Film® utilized as a projection screen.




How to cut a hole in Smart Tint®






Smart Tint® Non-Adhesive Installation Video:

Notification
  • Don’t use water or any other chemicals to wash, install or touching the edges of the film.
    • The Smart film should be 2 – 3 mm shorter than the glass to avoid a direct contact with the frame.
    • Strictly follow the wiring connection guide we offer before testing the film.
    • Strictly use our Smart Film® Edge Sealant provided by Smart Tint ONLY to avoid the delamination of the edges. We offer it in custom colors including CLEAR, White, Grey, Black, Aluminum.
WIRING NOTIFICATION:
VERY IMPORTANT TO COVER ALL ELECTRICAL CONNECTIONS INCLUDING THE BUS BARS THAT COME PRE ATTACHED TO THE FILM WITH A NON CONDUCTIVE TRIM TO FINALIZE INSTALLATION. We offer a trim kit solution.




Wiring and Electrical:


POWER TRANSFORMERS: A power transformer or power control unit is required to power Smart Tint® Smart Film®. This lowers the standard household or commercial voltage from 110-120VAC(USA/Canada) , 220-240VAC(Europe,Asia, Australia etc.) to 24-65VAC . Smart Tint manufactures the largest sizes and most efficient Smart Film in the world with 10 square feet only using 3-5 watts of power and manufacturing sizes of 1.8m(71") x No Height Restrictions. The rule of thumb is one 100watt transformer for every 120 square feet of material. All of our material is dimmable and 3rd party smart home compatible.

https://shop.smarttint.com/Power-Control-Options_ep_41.html

https://shop.smarttint.com/Electrical-_ep_121.html

Zones : It is important to decide on how many zones of independent control, turning Smart Tint® Smart Film® on and off / Dimming or both, that you want to have. This could be all the windows on one wall, separate windows on one wall, or several windows on different walls. Each zone to be controlled needs a minimum of one.


OR

INSTALLATION VIDEOS








Smart Tint Documentary



"How Smart Tint is manufactured"

smart tint pdlc film manufacturer usa

smart film manufacturer

smart tint manufactured in the usa

smart film manufacturer



Install our proprietary Smart Film® Sealant when the film is powered OFF. You must wait 12-24 hours before turning film on, allowing the Smart Film® Edge Sealant to DRY 100%.






PLEASE NOTE: Your Smart Tint® installation project is not complete until you seal all edges with our Smart Film® Edge Sealant only. Smart Tint is not responsible for any damage occurring from not following our installation guidelines.


WARNING: If edges are not properly sealed with our Smart Film® Edge Sealant, water/humidity will access the film and affect the technology making corrosion which causes the film to have streaks/strations and fail as shown below.
